Cocoon Overview

COCOON

Dexcowin’s cutting-edge technology has made another remarkable accomplishment. COCOON has every possible feature the users in the field currently expect and demand.

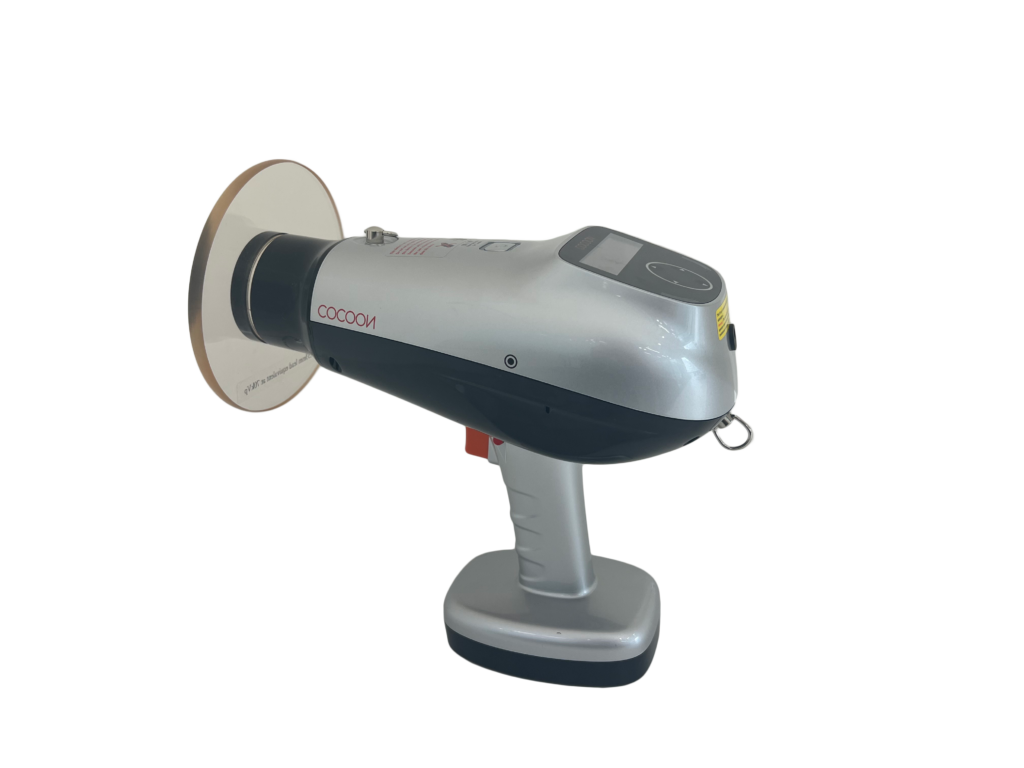

It is a gun type light weight portable x-ray unit, which was created to satisfy user’s demands.

COCOON is compatible with all kind of detectors, provides more stunning images, and it has a concern-free charging method with an improved battery capacity of up to 500 shots.

COCOON’s safety features such as Lock Mode & locking trigger makes the operation even safer.

Specifications

  • Product Name: Cocoon
  • Product Model Name: DX7017/ DX7020
  • Tube Voltage: 70 kV
  • Tube Current: 2mA (External Power) / 1. 7 mA (Internal Battery)
  • Tube Focal Spot Size: 0.4 mm
  • Power Consumption: 336 VA, 321VA
  • Cooling Method: Oil Cooling Method
  • Total Filtration: Over 2.3 mm Al (Inherent Filtration: 1.0 mm Al) °
  • Target Angle: 12.5°
  • Exposure Time Range: 0.05 -1.0 sec
  • Exposure Time Interval between the exposure : 0.01 sec
  • Distance to Target (Distance between Target and Focal Spot : 18 cm {7 inch)
  • Body Dimension: 322(L) x 134(W) x 262(H) [mm]
  • Body Weight : 4.8 lb. (Back Scattered Shield excluded)
  • Battery : 16.8 V
  • Battery exposure capacity : 500 Shots with full charged
  • Voice Guide pre recorded
  • Narration for quick user training
  • Wide UI screen

Features

  • Convenience
    • Trigger and gun grip
    • True one- hand X-ray shot
    • Easy selection of UI with Touch key
    • Customized Preset of exposure time
  • Advanced Safety Features

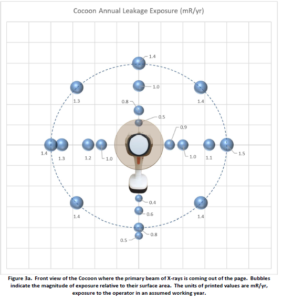

    • Radiation leakage prevention technology from the lead- coated generator and cone
    • Locking system to prevent unintentional exposure
    • Neck strap for accidents prevention and comfort
    • Quick Verbal Intro Guide During first use
    • Back scatter shield for operator protection
  • Mobility
    • Cordless, Extremely portable
    • Care-free charging method

F.A.Q.

Q. Is COCOON FDA approved?
  • Yes! K173046 is 510K number for COCOON.
Q. What is the safety features?
  • COCON is protected with a lead inside to block the radiation leakage.
  • Safety lock key prevents unintentional exposure.
  • A neck strap is provided.
  • COCOON speaks to give a verbal guide to the operator giving a caution for a safe operation.
  • COCOON was tested by a certified lab or a professor for safety
  • Back scatter shield permanently fixed.
Q. Is COCOON compatible with any sensors?
  • ACOCOON is an X-ray source. It is compatible with any kind of detector; sensor, film, PSP, etc.
Q. What is the warranty policy?
  • Cocoon has 1 year of manufacturing warranty.
Q. What are the better features compared with other gun type product?
  • We have put all accumulated technology on COCOON for safety and usability for example, Large screen, Menu selection by touch key, Voice guide, 5 times more shots capacity than competitor products, applied higher power (70kvp) to cover most of sensors, PSP or film etc. Please see the specification and features on COCOON overview.
Q. How long does it take to charge the battery?
  • It takes about 1.5 hours to fully charge, but COCOON package includes charging cradle. If you put COCOON on the charging cradle, it keeps charging all the time.
Q. COCOON turns off by itself in few minutes. Is this normal?
  • Yes, it is normal. In order to save battery power, COCOON turns off automatically in 3 minutes. You can adjust Power Save Time in the setting mode.
Q. What is the recommended distance to the skin when using COCOON?
  • We recommend you to position COCOON around 2 inches (5cm) from the skin or cheeks in a right angle.
Q. How should I clean it?
  • COCOON is UV coated, but it is not waterproof. So be cautioned not to put too much liquid type sanitizer or scrub the surface. It is okay softly rub with small amounts of sanitizer.

Images

Brochures

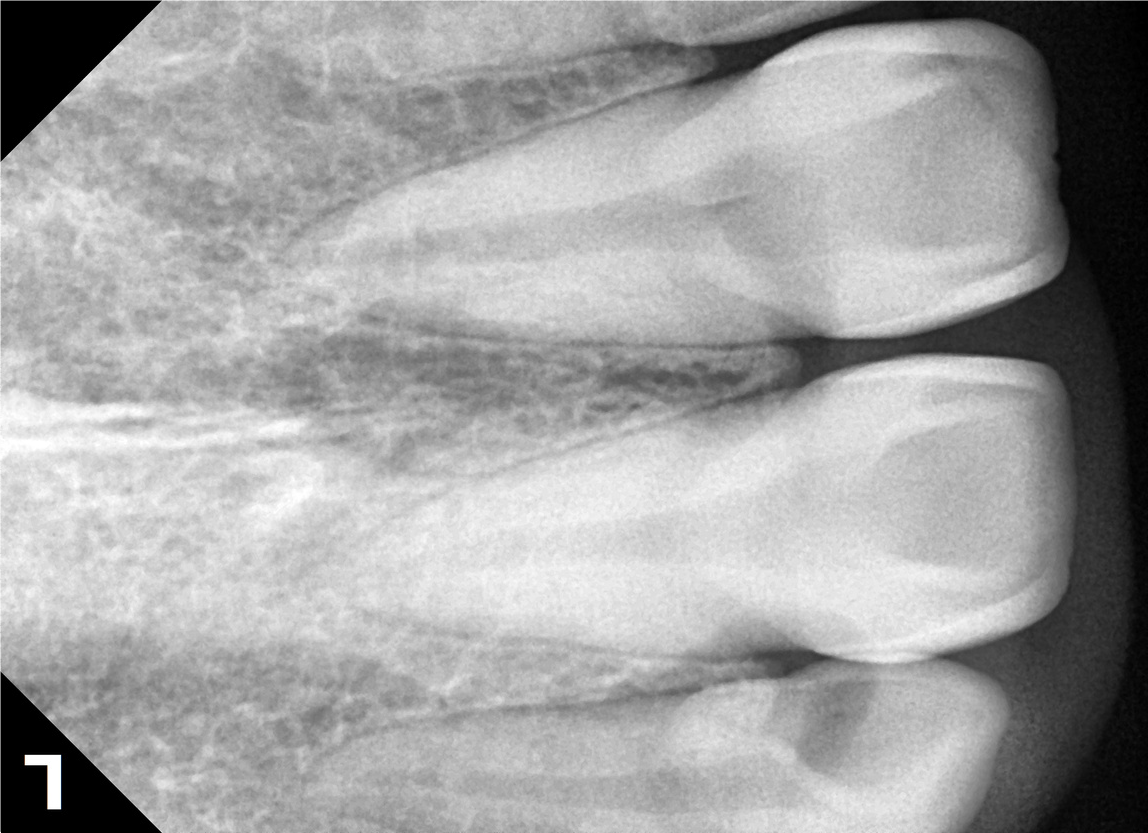

cocoon image number 1

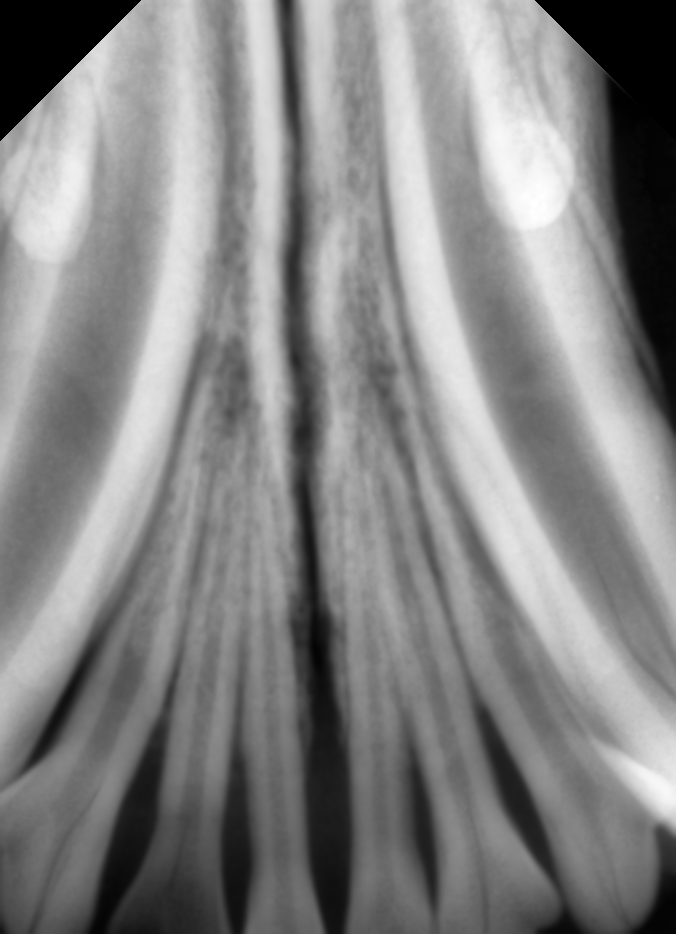

cocoon image number 2

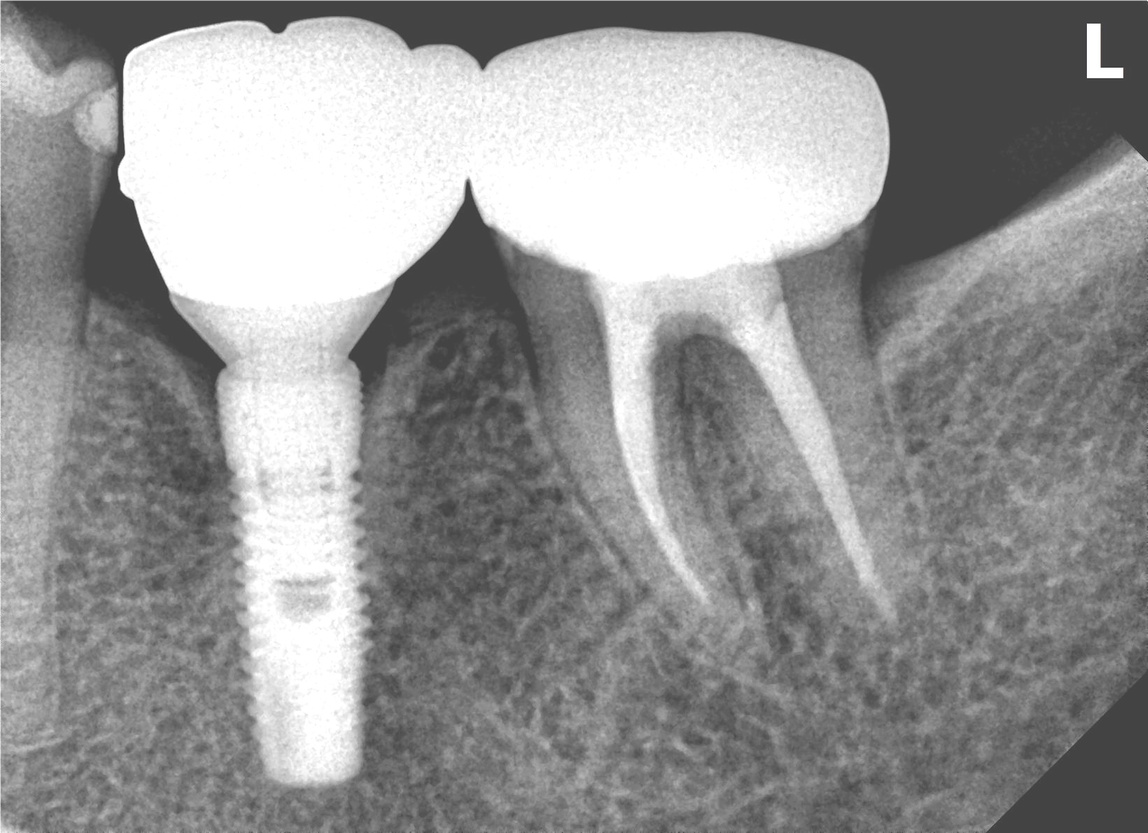

cocoon image number 3
